Flux station

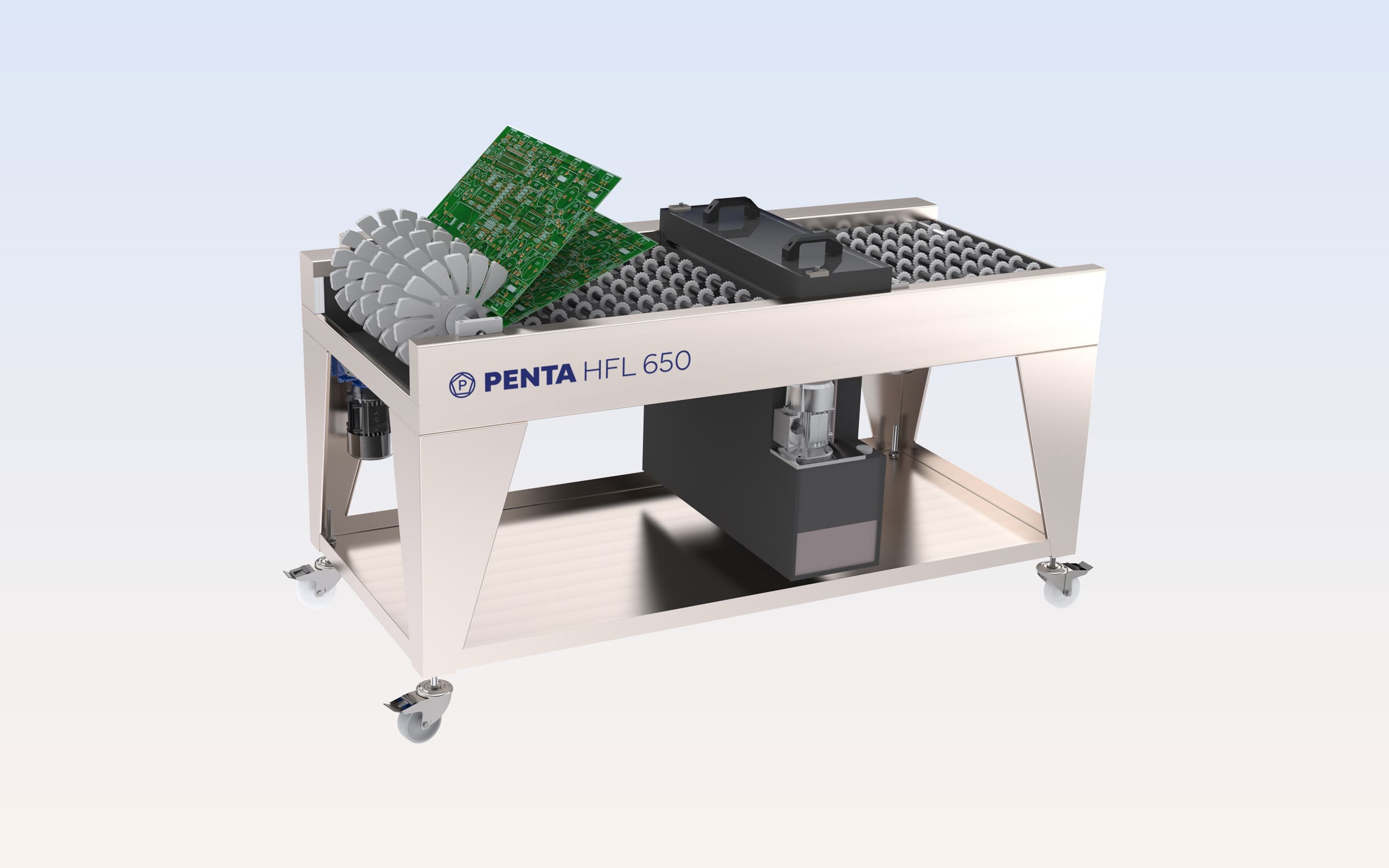

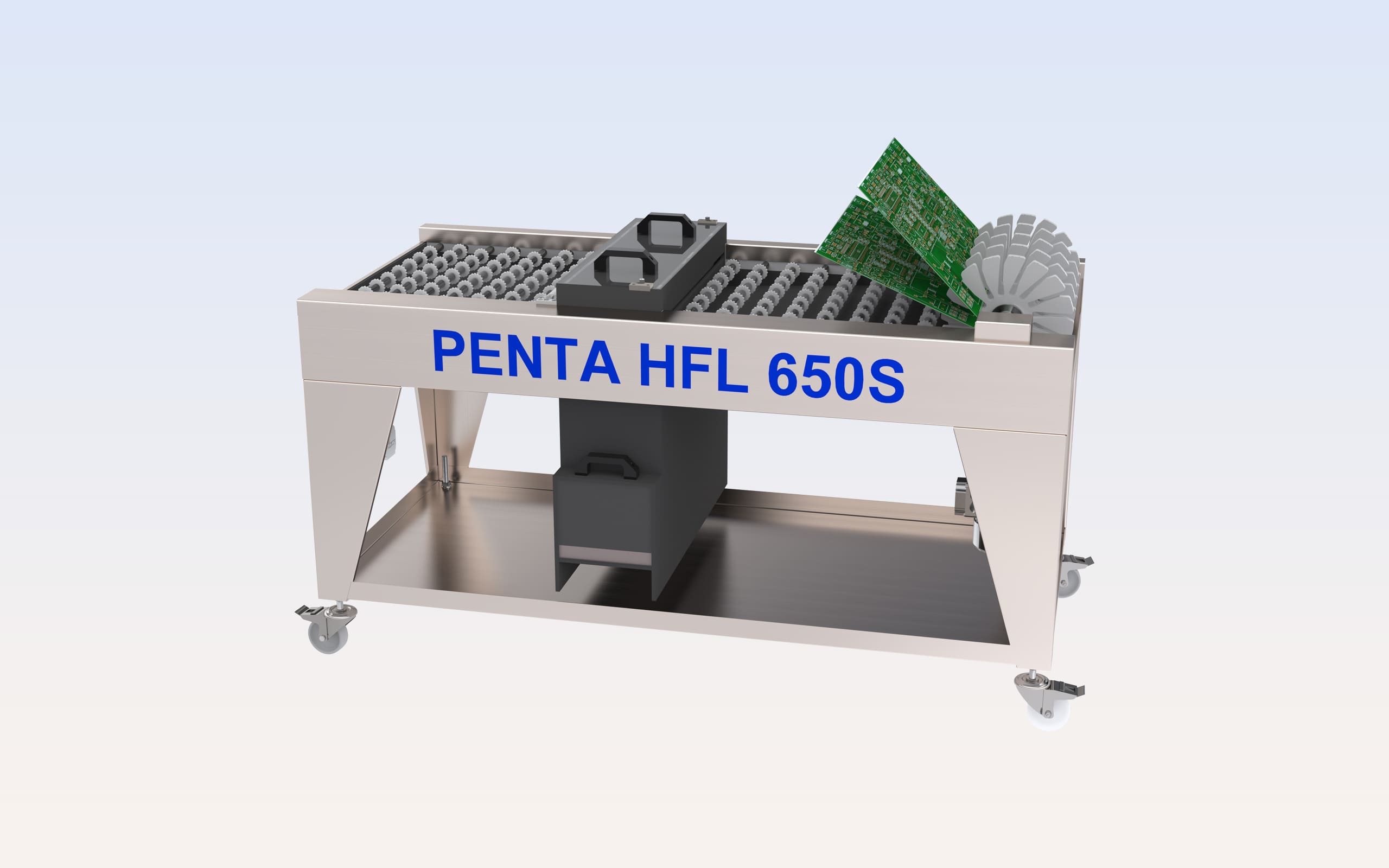

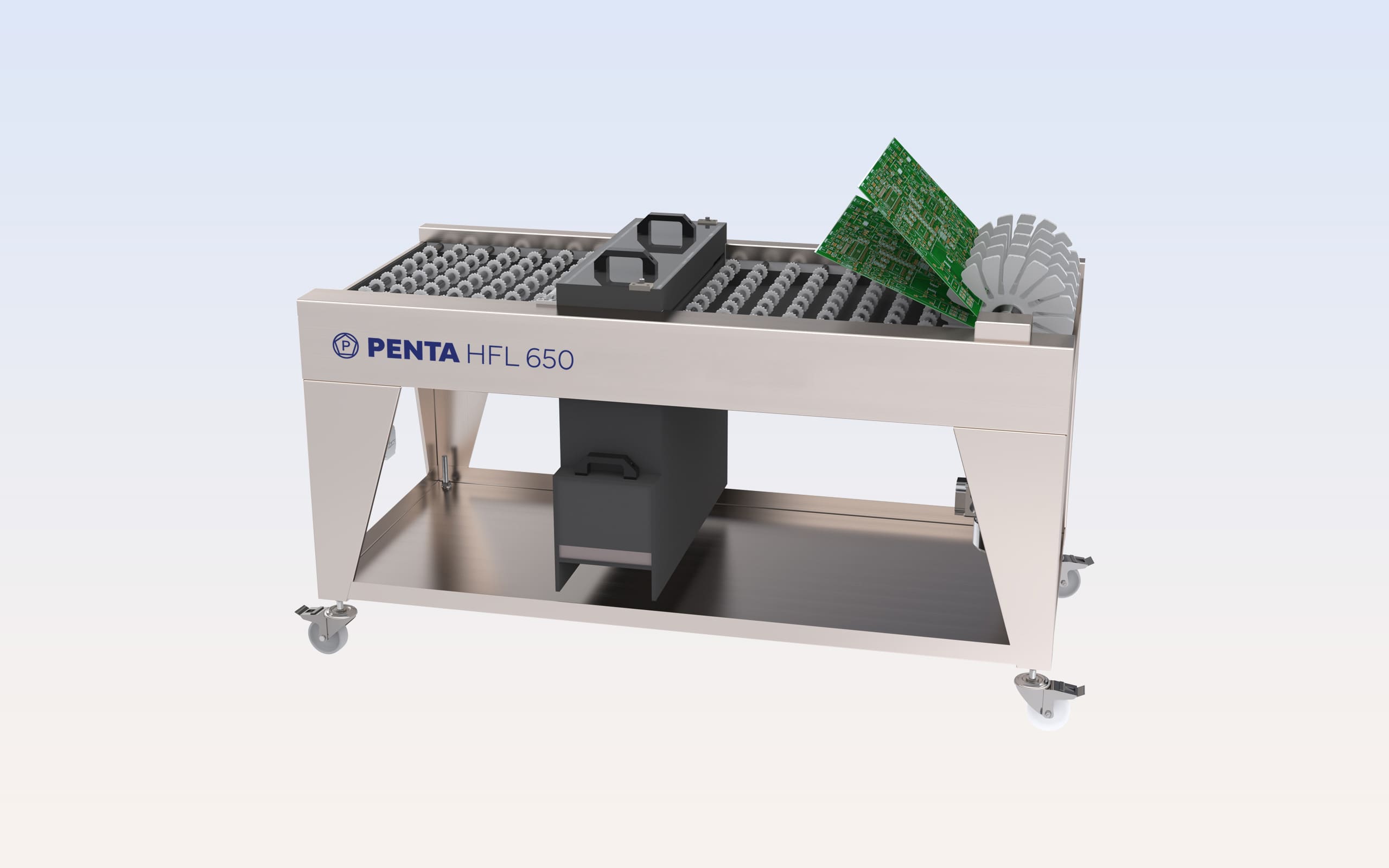

The body of PENTA fluxer is made entirely of stainless steel, while the wet tank is made of plastic. The fluxing station is equipped with a speed-controlled belt drive that is adjustable up to 5 m/min. The pump is made of titanium, Teflon and PE1000. The stacker with special profile ensures the safe positioning of all panel formats. Thanks to the non-contact laser sensor system, there is no interference from flux. The flux level is monitored and can be automatically refilled as an option. The PLC-controlled process guarantees high flexibility and safety. The fluxer is available in various sizes.

Technical features

  • Max. PCB size W x L x D: 635 mm x 700 mm x 5 mm
  • Flux tank capacity: 50 l
  • Flux consumption: 50gr/m2
  • Length: 1800 mm
  • Width: 950 mm
  • Height: 870...970 mm adjustable
  • Weight: 220 kg
  • Electrical connection: 0.5 kW
  • Power consumption: 0.35 kW
  • System control: SPS-Mitsubishi
